Made in india
20% Low cost
11% Low weight
Patented design
INNOVATION TO INNOVATIVE
Why One Way Clutch?
Compact One Way Clutch For Electric Bike, Hub Motor And Petrol Bikes.
Compact design with Lesser parts and Proven design in Two wheeler application makes the MAC One Way Clutch more reliable.
Reduction of loose components and application of high end polymer ensures minimum weight saving of 15% compared with the competition.
Compact Design with no loose parts makes the MAC One Way Clutch easy to assemble
- Increased reliability
- Lower weight
- Easier assembly
PRODUCT BENEFITS
ONE WAY CLUTCH
Roller Ramp clutches consist essentially of an outer race with a cylindrical inside diameter, an inner race with ramps, and a set of rollers which are individually spring loaded to provided contact between the rollers and both races. This arrangement assures instant action at all running speeds and guarantees immediate driving capability whenever one of the two races rotates with respect to the other in the drive direction
Increased reliability
Compact design with Lesser parts and Proven design in Two wheeler application makes the MAC One Way Clutch more reliable.
Lower weight
Reduction of loose components and application of high end polymer ensures minimum weight saving of 15% compared with the competition.
Easier assembly
Compact Design with no loose parts makes the MAC One Way Clutch easy to assemble
Compact solution
With just 4 components MAC One Way Clutch is the most compact solution in the market.

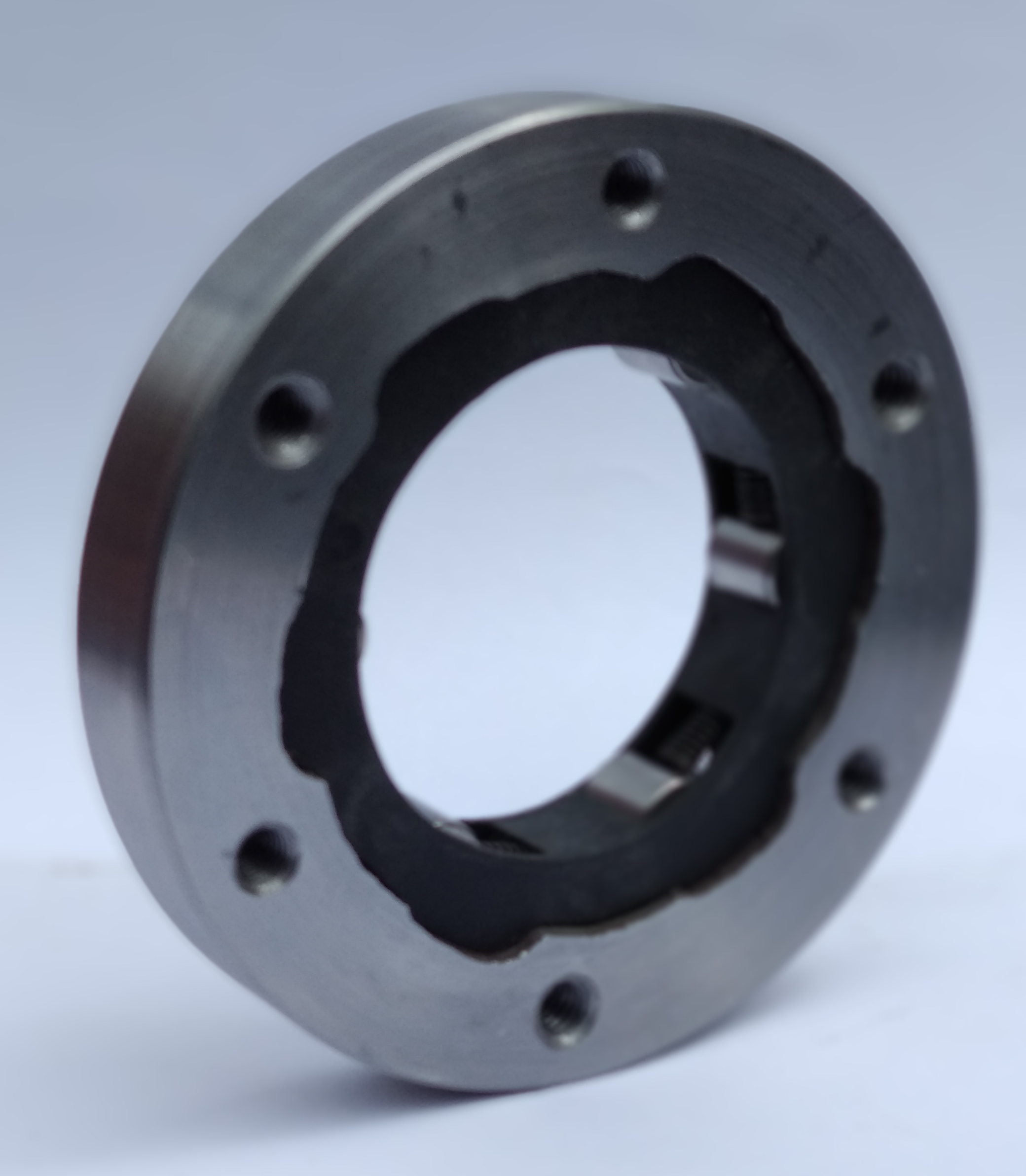

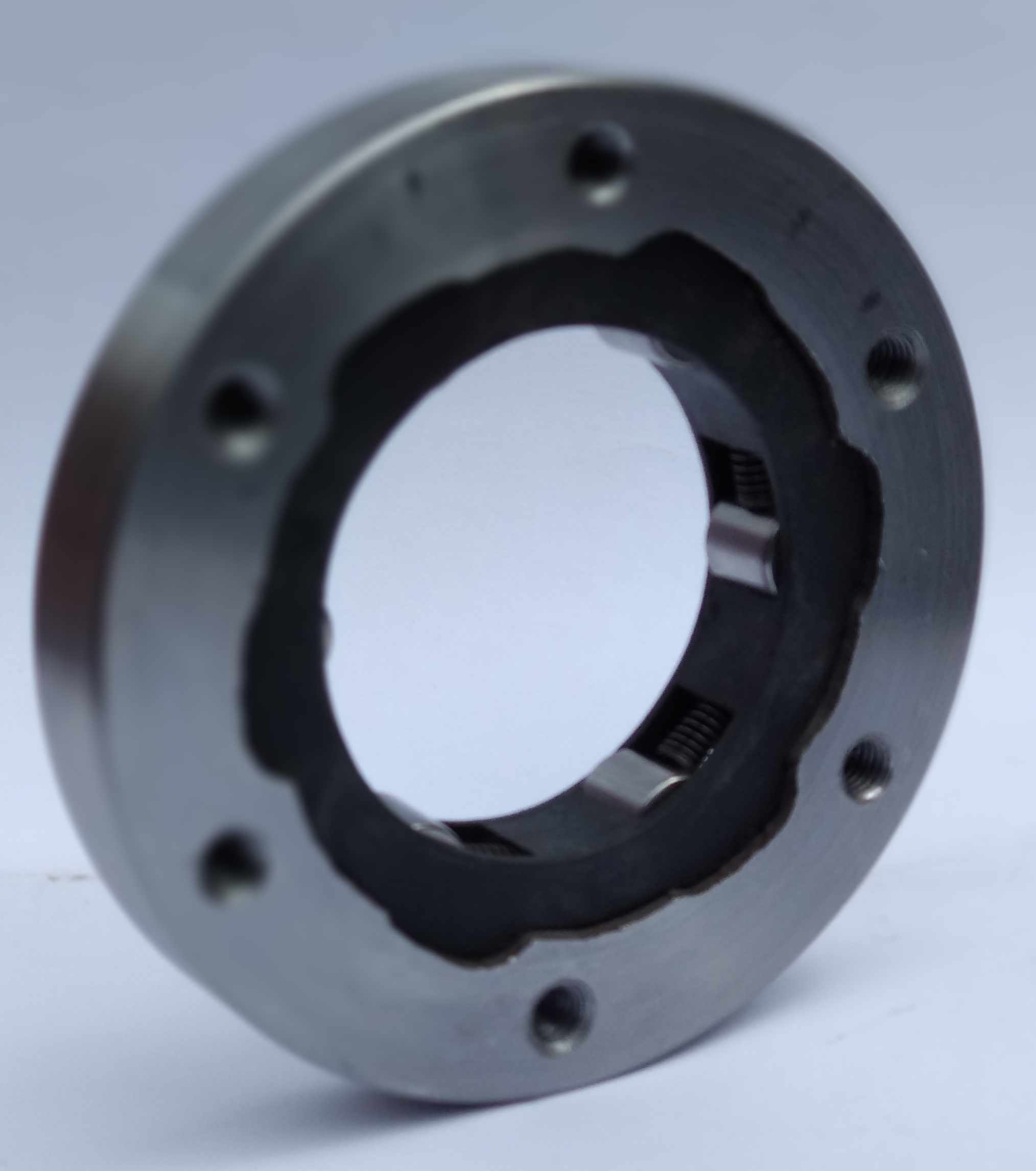

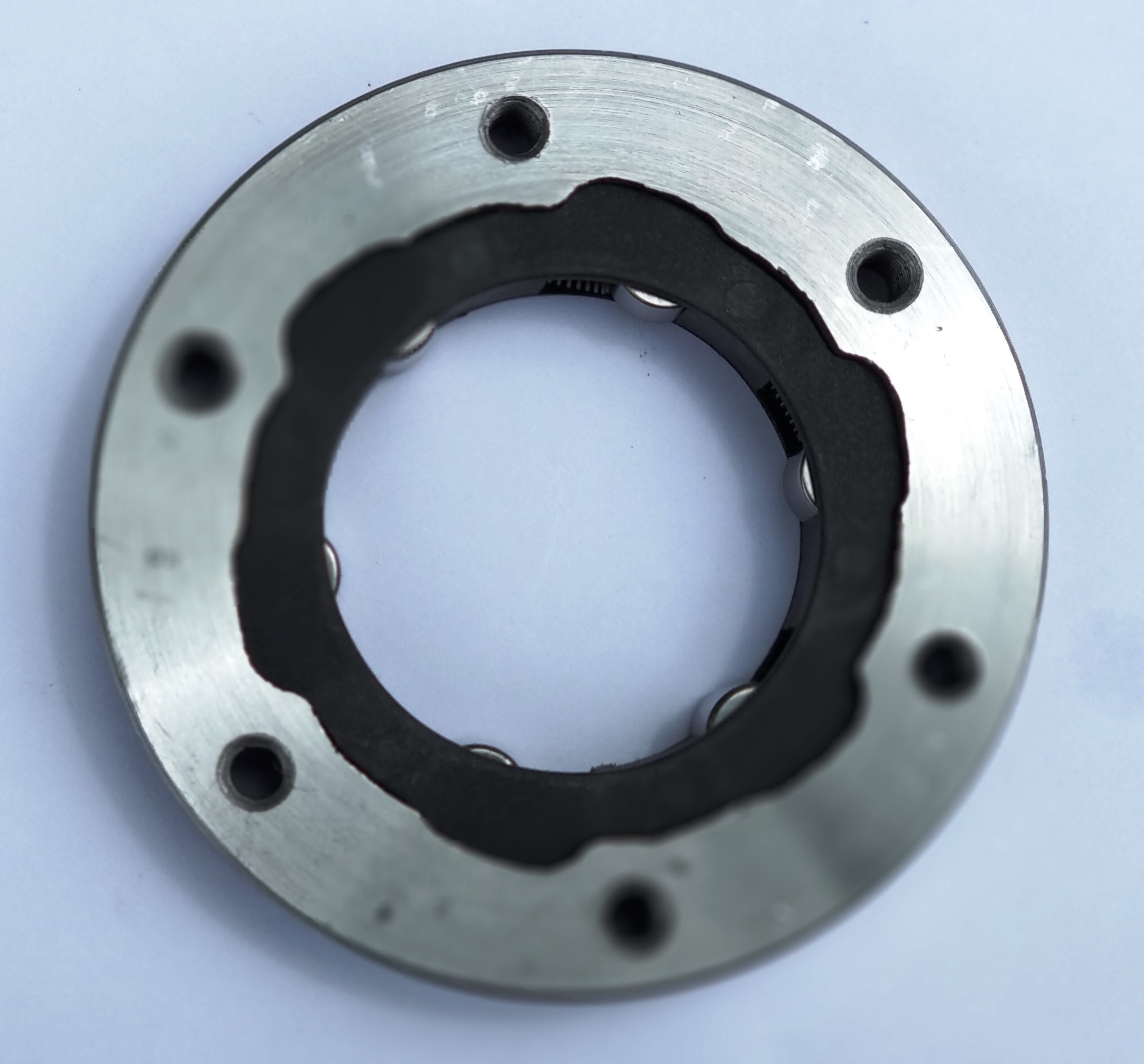

ONE WAY CLUTCH PETROL BIKE
| Proposal drawing | Outer diameter (mm) | Inner diameter (mm) | Width (mm) | Mounting hole PCD (mm) | Torque capacity (Nm) |
|---|---|---|---|---|---|
| MACO-P8 | 95 | 45.66 | 13.4 | 76 | 140 |
| MACO-P9 | 74 | 38.7 | |||
| MACO-P11 | 85 | 42.2 | 13.5 | 71 | 122 |
| MACO-P13 | 85 | 42.2 | 11.8 | 71 | 102 |
| MACO-P14 | 88 | 39.62 | 13 | 78 | 115 |
| MACO-P14 | 88 | 42.3 | 15.57 | 64 | 59 |

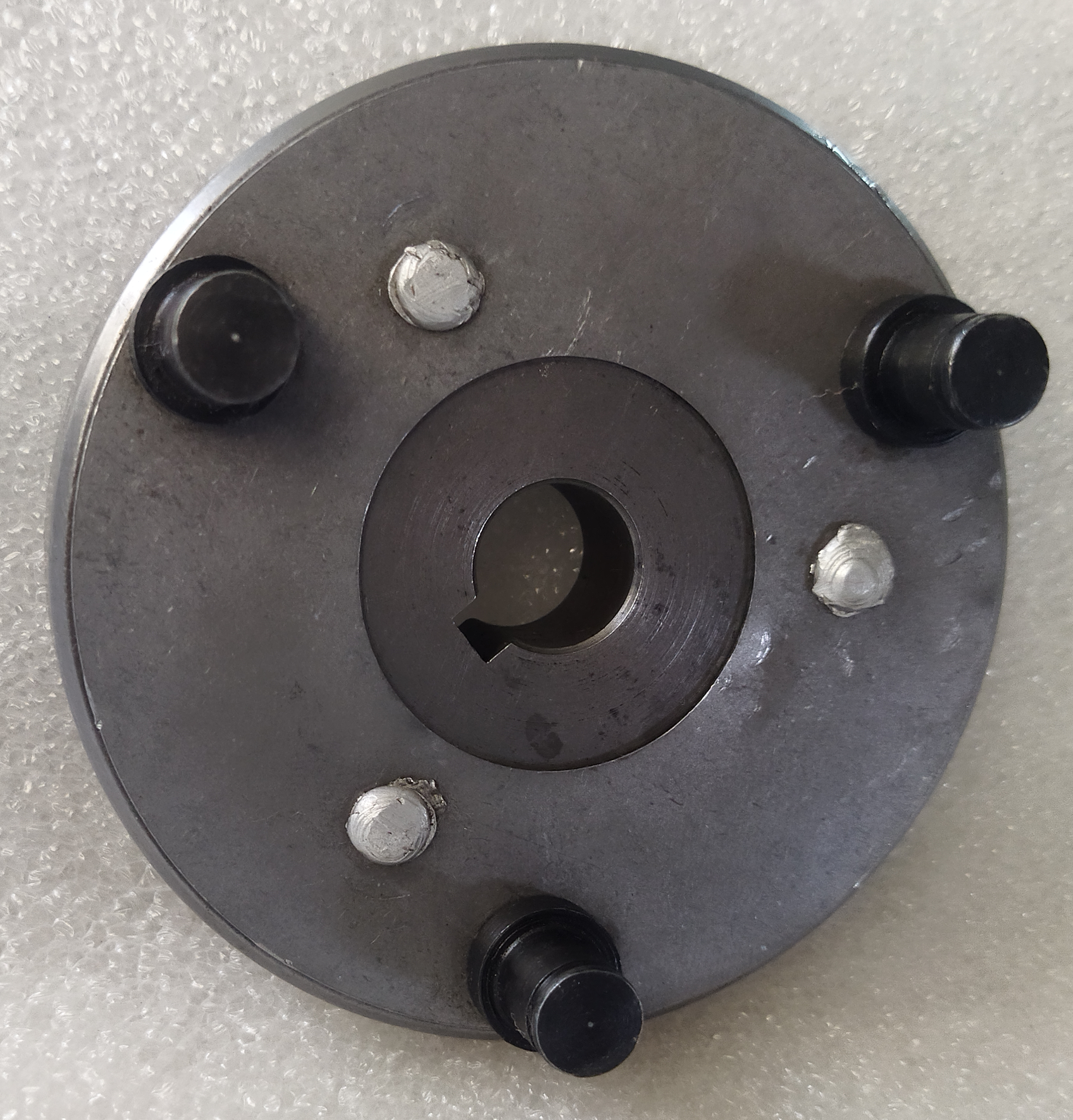

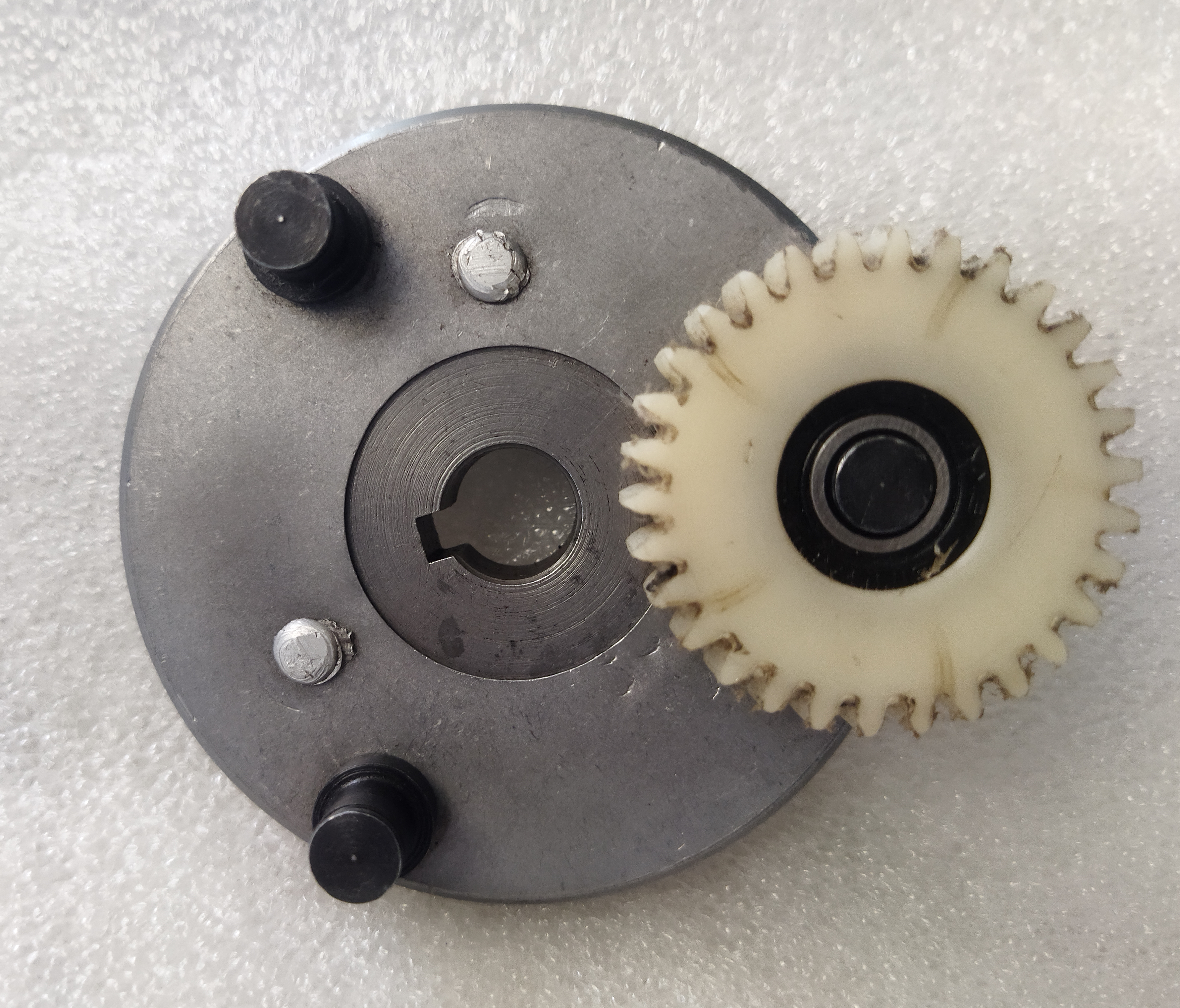

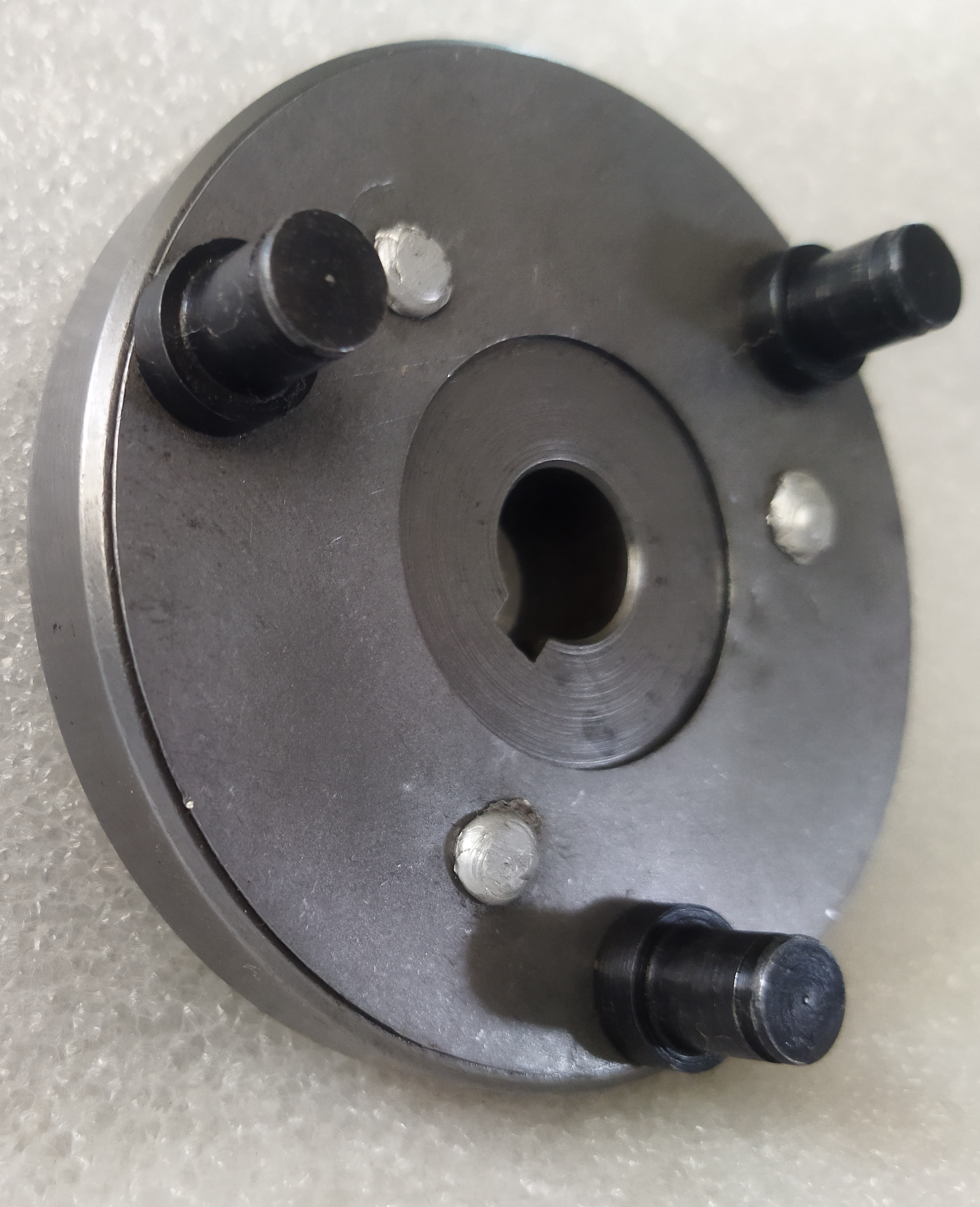

ONE WAY CLUTCH E- Bicycle
| Proposal drawing | Outer diameter (mm) | Inner diameter (mm) | Width (mm) | Mounting hole PCD (mm) | Torque capacity (Nm) |
|---|---|---|---|---|---|
| MACO-P16 | 73 | 12 | 11 | 60 | 100 |
